BI SQL # 113 : SQL Server DBA Scripts : Display Table, Index Name , Key Cols and list of included columns

Hi Geeks,

In this article we are going to cover How to Display Table, Index Name , Key Cols and list of included columns

In this post we are going to discuss following points:

  • Problem Statement of SQL Script:
  • Description of SQL Script:
  • SQL Script Output Column
  • SQL Script Code
  • User Level to execute
  • SQL Script Output Screenshot



Problem Statement of SQL Script:

How to Display List of Table, Index Name, Key Cols and list of included cols in one result?

Description of SQL Script:

This script will display, Index Name, Key Cols and list of included cols

SQL Script Output Column


SQL Script Code

SELECT '[' + Sch.NAME + '].[' + Tab.[name] + ']' AS TableName
    ,Ind.[name] AS IndexName
    ,SUBSTRING((
            SELECT ', ' + AC.NAME
            FROM sys.[tables] AS T
            INNER JOIN sys.[indexes] I ON T.[object_id] = I.[object_id]
            INNER JOIN sys.[index_columns] IC ON I.[object_id] = IC.
                [object_id]
                AND I.[index_id] = IC.[index_id]
            INNER JOIN sys.[all_columns] AC ON T.[object_id] = AC.[object_id]
                AND IC.[column_id] = AC.[column_id]
            WHERE Ind.[object_id] = I.[object_id]
                AND Ind.index_id = I.index_id
                AND IC.is_included_column = 0
            ORDER BY IC.key_ordinal
            FOR XML PATH('')
            ), 2, 8000) AS KeyCols
    ,SUBSTRING((
            SELECT ', ' + AC.NAME
            FROM sys.[tables] AS T
            INNER JOIN sys.[indexes] I ON T.[object_id] = I.[object_id]
            INNER JOIN sys.[index_columns] IC ON I.[object_id] = IC.
                [object_id]
                AND I.[index_id] = IC.[index_id]
            INNER JOIN sys.[all_columns] AC ON T.[object_id] = AC.[object_id]
                AND IC.[column_id] = AC.[column_id]
            WHERE Ind.[object_id] = I.[object_id]
                AND Ind.index_id = I.index_id
                AND IC.is_included_column = 1
            ORDER BY IC.key_ordinal
            FOR XML PATH('')
            ), 2, 8000) AS IncludeCols
FROM sys.[indexes] Ind
INNER JOIN sys.[tables] AS Tab ON Tab.[object_id] = Ind.[object_id]
INNER JOIN sys.[schemas] AS Sch ON Sch.[schema_id] = Tab.[schema_id]
-- WHERE Tab.name  = 'MyTableNameHere'
-- uncomment to get single table indexes detail
ORDER BY TableName

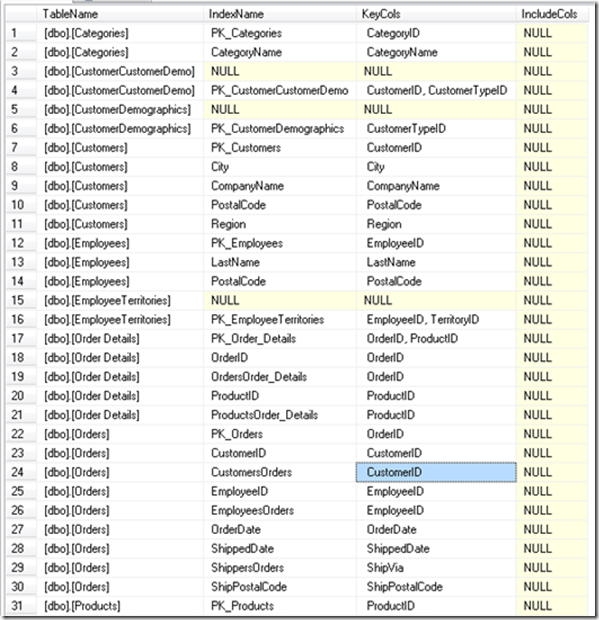

SQL Script Output Screenshot


User Level to execute

    300

    Hope you will like to Display Table, Index Name , Key Cols and list of included columns.
