Hi Folks,

In this article we are going to cover 3 and last type of C. Compare Database.

In this post we are going to discuss following points:

• Problem Statement of SQL Script:
• Description of SQL Script:
• SQL Script Output Column
• Input Parameter of SQL Script
• SQL Script Code

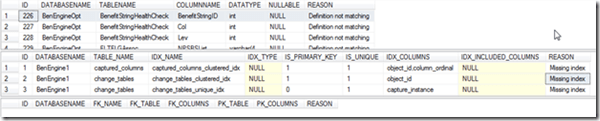

• SQL Script Output Screenshot
• User Level to execute

Problem Statement of SQL Script:

Compare database.

Description of SQL Script:

This SQL script will compare table columns, Index and foreign keys in two databases, I am planning to continue this further to add more and more options to this. This will show a result with missing objects and the objects with definition mismatch.

SQL Script Output Column



Input Parameter of SQL Script

@SourceDB SYSNAME, @TargetDb SYSNAME

SQL Script Code

CREATE PROC sp_CompareDb (
    @SourceDB SYSNAME
    ,@TargetDb SYSNAME
    )
AS
/*
DECLARE @SourceDB SYSNAME='DB1',
                  @TargetDb SYSNAME='DB2'
*/
SET NOCOUNT ON
SET ANSI_WARNINGS ON
SET ANSI_NULLS ON

DECLARE @sqlStr VARCHAR(8000)

SET @SourceDB = Rtrim(Ltrim(@SourceDB))

IF DB_ID(@SourceDB) IS NULL
BEGIN
    PRINT 'Error: Unable to find the database ' + @SourceDB +
        '!!!'

    RETURN
END

SET @TargetDb = Rtrim(Ltrim(@TargetDb))

IF DB_ID(@SourceDB) IS NULL
BEGIN
    PRINT 'Error: Unable to find the database ' + @TargetDb +
        '!!!'

    RETURN
END

PRINT Replicate('-', Len(@SourceDB) + Len(@TargetDb) + 25)
PRINT 'Comparing databases ' + @SourceDB + ' and ' + @TargetDb
PRINT Replicate('-', Len(@SourceDB) + Len(@TargetDb) + 25)

IF OBJECT_ID('TEMPDB..#TABLIST_SOURCE') IS NOT NULL
    DROP TABLE #TABLIST_SOURCE

IF OBJECT_ID('TEMPDB..#TABLIST_TARGET') IS NOT NULL
    DROP TABLE #TABLIST_TARGET

IF OBJECT_ID('TEMPDB..#IDXLIST_SOURCE') IS NOT NULL
    DROP TABLE #IDXLIST_SOURCE

IF OBJECT_ID('TEMPDB..#IDXLIST_TARGET') IS NOT NULL
    DROP TABLE #IDXLIST_TARGET

IF OBJECT_ID('TEMPDB..#FKLIST_SOURCE') IS NOT NULL
    DROP TABLE #FKLIST_SOURCE

IF OBJECT_ID('TEMPDB..#FKLIST_TARGET') IS NOT NULL
    DROP TABLE #FKLIST_TARGET

IF OBJECT_ID('TEMPDB..#TAB_RESULTS') IS NOT NULL
    DROP TABLE #TAB_RESULTS

IF OBJECT_ID('TEMPDB..#IDX_RESULTS') IS NOT NULL
    DROP TABLE #IDX_RESULTS

IF OBJECT_ID('TEMPDB..#FK_RESULTS') IS NOT NULL
    DROP TABLE #FK_RESULTS

CREATE TABLE #TABLIST_SOURCE (
    ID INT IDENTITY(1, 1)
    ,DATABASENAME SYSNAME
    ,TABLENAME SYSNAME
    ,COLUMNNAME SYSNAME
    ,DATATYPE SYSNAME
    ,NULLABLE VARCHAR(15)
    )

CREATE TABLE #TABLIST_TARGET (
    ID INT IDENTITY(1, 1)
    ,DATABASENAME SYSNAME
    ,TABLENAME SYSNAME
    ,COLUMNNAME SYSNAME
    ,DATATYPE SYSNAME
    ,NULLABLE VARCHAR(15)
    )

CREATE TABLE #IDXLIST_SOURCE (
    ID INT IDENTITY(1, 1)
    ,DATABASENAME SYSNAME
    ,TABLE_NAME SYSNAME
    ,IDX_NAME SYSNAME
    ,IDX_TYPE VARCHAR(20)
    ,IS_PRIMARY_KEY VARCHAR(10)
    ,IS_UNIQUE VARCHAR(10)
    ,IDX_COLUMNS VARCHAR(1000)
    ,IDX_INCLUDED_COLUMNS VARCHAR(1000)
    );

CREATE TABLE #IDXLIST_TARGET (
    ID INT IDENTITY(1, 1)
    ,DATABASENAME SYSNAME
    ,TABLE_NAME SYSNAME
    ,IDX_NAME SYSNAME
    ,IDX_TYPE VARCHAR(20)
    ,IS_PRIMARY_KEY VARCHAR(10)
    ,IS_UNIQUE VARCHAR(10)
    ,IDX_COLUMNS VARCHAR(1000)
    ,IDX_INCLUDED_COLUMNS VARCHAR(1000)
    );

CREATE TABLE #FKLIST_SOURCE (
    ID INT IDENTITY(1, 1)
    ,DATABASENAME SYSNAME
    ,FK_NAME SYSNAME
    ,FK_TABLE SYSNAME
    ,FK_COLUMNS VARCHAR(1000)
    ,PK_TABLE SYSNAME
    ,PK_COLUMNS VARCHAR(1000)
    );

CREATE TABLE #FKLIST_TARGET (
    ID INT IDENTITY(1, 1)
    ,DATABASENAME SYSNAME
    ,FK_NAME SYSNAME
    ,FK_TABLE SYSNAME
    ,FK_COLUMNS VARCHAR(1000)
    ,PK_TABLE SYSNAME
    ,PK_COLUMNS VARCHAR(1000)
    );

CREATE TABLE #TAB_RESULTS (
    ID INT IDENTITY(1, 1)
    ,DATABASENAME SYSNAME
    ,TABLENAME SYSNAME
    ,COLUMNNAME SYSNAME
    ,DATATYPE SYSNAME
    ,NULLABLE VARCHAR(15)
    ,REASON VARCHAR(150)
    );

CREATE TABLE #IDX_RESULTS (
    ID INT IDENTITY(1, 1)
    ,DATABASENAME SYSNAME
    ,TABLE_NAME SYSNAME
    ,IDX_NAME SYSNAME
    ,IDX_TYPE VARCHAR(20)
    ,IS_PRIMARY_KEY VARCHAR(10)
    ,IS_UNIQUE VARCHAR(10)
    ,IDX_COLUMNS VARCHAR(1000)
    ,IDX_INCLUDED_COLUMNS VARCHAR(1000)
    ,REASON VARCHAR(150)
    );

CREATE TABLE #FK_RESULTS (
    ID INT IDENTITY(1, 1)
    ,DATABASENAME SYSNAME
    ,FK_NAME SYSNAME
    ,FK_TABLE SYSNAME
    ,FK_COLUMNS VARCHAR(1000)
    ,PK_TABLE SYSNAME
    ,PK_COLUMNS VARCHAR(1000)
    ,REASON VARCHAR(150)
    );

PRINT 'Getting table and column list!';
PRINT Replicate('-', Len(@SourceDB) + Len(@TargetDb) + 25);

BEGIN
    INSERT INTO #TABLIST_SOURCE (
        DATABASENAME
        ,TABLENAME
        ,COLUMNNAME
        ,DATATYPE
        ,NULLABLE
        )
    EXEC (
            'SELECT ''' + @SourceDB +
            ''', T.TABLE_NAME TABLENAME,
             C.COLUMN_NAME COLUMNNAME,
             TY.name + case when TY.name IN

(''char'',''varchar'',''nvarchar'') THEN
                ''(''+CASE WHEN C.CHARACTER_MAXIMUM_LENGTH>0 THEN CAST

(C.CHARACTER_MAXIMUM_LENGTH AS VARCHAR) ELSE ''max''END+'')''
                ELSE
                    ''''
                END
                DATATYPE,
                CASE WHEN C.is_nullable=''NO'' THEN
                    ''NOT NULL''
                    ELSE
                    ''NULL''
                END NULLABLE
                    FROM '
            + @SourceDB +
            '.INFORMATION_SCHEMA.TABLES T
                        INNER JOIN  '
            + @SourceDB +
            '.INFORMATION_SCHEMA.COLUMNS C
                            ON T.TABLE_NAME=C.TABLE_NAME
                            and T.TABLE_CATALOG=C.TABLE_CATALOG
                            and T.TABLE_SCHEMA=C.TABLE_SCHEMA
                         INNER JOIN '
            + @SourceDB +
            '.sys.types TY
                        ON C.DATA_TYPE =TY.name
                        ORDER BY TABLENAME, COLUMNNAME,C.ORDINAL_POSITION'
            );

    INSERT INTO #TABLIST_TARGET (
        DATABASENAME
        ,TABLENAME
        ,COLUMNNAME
        ,DATATYPE
        ,NULLABLE
        )
    EXEC (
            'SELECT ''' + @TargetDB +
            ''', T.TABLE_NAME TABLENAME,
             C.COLUMN_NAME COLUMNNAME,
             TY.name + case when TY.name IN

(''char'',''varchar'',''nvarchar'') THEN
                ''(''+CASE WHEN C.CHARACTER_MAXIMUM_LENGTH>0 THEN CAST

(C.CHARACTER_MAXIMUM_LENGTH AS VARCHAR) ELSE ''max''END+'')''
                ELSE
                    ''''
                END
                DATATYPE,
                CASE WHEN C.is_nullable=''NO'' THEN
                    ''NOT NULL''
                    ELSE
                    ''NULL''
                END NULLABLE
                    FROM '
            + @TargetDB +
            '.INFORMATION_SCHEMA.TABLES T
                        INNER JOIN  '
            + @TargetDB +
            '.INFORMATION_SCHEMA.COLUMNS C
                            ON T.TABLE_NAME=C.TABLE_NAME
                            and T.TABLE_CATALOG=C.TABLE_CATALOG
                            and T.TABLE_SCHEMA=C.TABLE_SCHEMA
                         INNER JOIN '
            + @TargetDB +
            '.sys.types TY
                        ON C.DATA_TYPE =TY.name
                        ORDER BY TABLENAME, COLUMNNAME,C.ORDINAL_POSITION'
            );

    PRINT 'Getting index list!';
    PRINT Replicate('-', Len(@SourceDB) + Len(@TargetDb) + 25);

    INSERT INTO #IDXLIST_SOURCE (
        DATABASENAME
        ,TABLE_NAME
        ,IDX_NAME
        ,IDX_TYPE
        ,IS_PRIMARY_KEY
        ,IS_UNIQUE
        ,IDX_COLUMNS
        ,IDX_INCLUDED_COLUMNS
        )
    EXEC (
            'WITH CTE AS (
           SELECT      ic.index_id + ic.object_id AS IndexId,t.name AS

TableName
                       ,i.name AS IndexName
                                             ,case when

ic.is_included_column =0 then
                                                    c.name end AS ColumnName
                                            ,case when

ic.is_included_column =1 then
                                                    c.name end AS

IncludedColumn
                                                    ,i.type_desc
                       ,i.is_primary_key,i.is_unique
           FROM  '
            + @SourceDB +
            '.sys.indexes i
           INNER JOIN ' +
            @SourceDB +
            '.sys.index_columns ic
                   ON  i.index_id    =   ic.index_id
                   AND i.object_id   =   ic.object_id
           INNER JOIN '
            + @SourceDB +
            '.sys.columns c
                   ON  ic.column_id  =   c.column_id
                   AND i.object_id   =   c.object_id
           INNER JOIN '
            + @SourceDB +
            '.sys.tables t
                   ON  i.object_id = t.object_id
)
SELECT '''
            + @SourceDB +
            ''',c.TableName TABLE_NAME,c.IndexName INDEX_NAME,c.type_desc

INDEX_TYPE ,c.is_primary_key IS_PRIMARY_KEY,c.is_unique IS_UNIQUE
       ,STUFF( ( SELECT '',''+ a.ColumnName FROM CTE a WHERE c.IndexId =

a.IndexId FOR XML PATH('''')),1 ,1, '''') AS COLUMNS
       ,STUFF( ( SELECT '',''+ a.IncludedColumn FROM CTE a WHERE c.IndexId =

a.IndexId FOR XML PATH('''')),1 ,1, '''') AS INCLUDED_COLUMNS
FROM   CTE c
GROUP  BY c.IndexId,c.TableName,c.IndexName,

c.type_desc,c.is_primary_key,c.is_unique
ORDER  BY c.TableName ASC,c.is_primary_key DESC; '
            );

    INSERT INTO #IDXLIST_TARGET (
        DATABASENAME
        ,TABLE_NAME
        ,IDX_NAME
        ,IDX_TYPE
        ,IS_PRIMARY_KEY
        ,IS_UNIQUE
        ,IDX_COLUMNS
        ,IDX_INCLUDED_COLUMNS
        )
    EXEC (
            'WITH CTE AS (
           SELECT      ic.index_id + ic.object_id AS

IndexId,t.name AS TableName
                       ,i.name AS IndexName
                                             ,case when

ic.is_included_column =0 then
                                                    c.name end AS ColumnName
                                            ,case when

ic.is_included_column =1 then
                                                    c.name end AS

IncludedColumn
                                                    ,i.type_desc
                       ,i.is_primary_key,i.is_unique
           FROM  '
            + @TargetDB +
            '.sys.indexes i
           INNER JOIN ' +
            @TargetDB +
            '.sys.index_columns ic
                   ON  i.index_id    =   ic.index_id
                   AND i.object_id   =   ic.object_id
           INNER JOIN '
            + @TargetDB +
            '.sys.columns c
                   ON  ic.column_id  =   c.column_id
                   AND i.object_id   =   c.object_id
           INNER JOIN '
            + @TargetDB +
            '.sys.tables t
                   ON  i.object_id = t.object_id
)
SELECT '''
            + @TargetDB +
            ''',c.TableName,c.IndexName,

c.type_desc,c.is_primary_key,c.is_unique
       ,STUFF( ( SELECT '',''+ a.ColumnName FROM CTE a WHERE

c.IndexId = a.IndexId FOR XML PATH('''')),1 ,1, '''') AS Columns
       ,STUFF( ( SELECT '',''+ a.IncludedColumn FROM CTE a

WHERE c.IndexId = a.IndexId FOR XML PATH('''')),1 ,1, '''') AS IncludedColumns
FROM   CTE c
GROUP  BY c.IndexId,c.TableName,c.IndexName,

c.type_desc,c.is_primary_key,c.is_unique
ORDER  BY c.TableName ASC,c.is_primary_key DESC; '
            );

    PRINT 'Getting foreign key list!';
    PRINT Replicate('-', Len(@SourceDB) + Len(@TargetDb) + 25);

    INSERT INTO #FKLIST_SOURCE (
        DATABASENAME
        ,FK_NAME
        ,FK_TABLE
        ,FK_COLUMNS
        ,PK_TABLE
        ,PK_COLUMNS
        )
    EXEC (
            'With CTE
                AS
            (select OBJECT_NAME(FK.parent_object_id,db_id('''
            + @TargetDB +
            ''')) PK_TABLE,
                        C1.name PK_COLUMN,
            object_name(FK.referenced_object_id,db_id('''
            + @TargetDB +
            '''))FK_TABLE,
            C2.name FK_COLUMN,
            FK.name     FK_NAME
from
        '
            + @SourceDB +
            '.sys.foreign_keys FK
            inner join
        '
            + @SourceDB +
            '.sys.foreign_key_columns FKC
            on FK.object_id=FKC.constraint_object_id
            inner join
        '
            + @SourceDB +
            '.sys.columns C1
            on FKC.parent_column_id=C1.column_id
            and FKC.parent_object_id=C1.object_id
            inner join
        '
            + @SourceDB +
            '.sys.columns C2
            on FKC.referenced_column_id=C2.column_id
            and FKC.referenced_object_id=C2.object_id
    )
SELECT '''
            + @SourceDB +
            ''',C.FK_NAME,
             C.FK_TABLE,             STUFF( ( SELECT '',''+ A.FK_COLUMN

FROM CTE a WHERE c.FK_NAME = a.FK_NAME and C.FK_TABLE=a.FK_TABLE FOR XML

PATH('''')),1 ,1, '''') AS FK_COLUMNS,
             C.PK_TABLE,
             STUFF( ( SELECT '',''+ A.PK_Column FROM CTE a

WHERE c.FK_NAME = a.FK_NAME and C.PK_TABLE=a.PK_TABLE FOR XML

PATH('''')),1 ,1, '''') AS PK_COLUMNS
FROM CTE C
group by C.FK_NAME,
             C.FK_TABLE,
             C.PK_TABLE'
            )

    INSERT INTO #FKLIST_TARGET (
        DATABASENAME
        ,FK_NAME
        ,FK_TABLE
        ,FK_COLUMNS
        ,PK_TABLE
        ,PK_COLUMNS
        )
    EXEC (
            '
        With CTE
AS
(select OBJECT_NAME(FK.parent_object_id,db_id('''
            + @TargetDB +
            ''')) PK_TABLE,
            C1.name PK_COLUMN,
            object_name(FK.referenced_object_id,db_id('''
            + @TargetDB +
            '''))FK_TABLE,
            C2.name FK_COLUMN,
            FK.name     FK_NAME
from
        '
            + @TargetDB +
            '.sys.foreign_keys FK
            inner join
        '
            + @TargetDB +
            '.sys.foreign_key_columns FKC
            on FK.object_id=FKC.constraint_object_id
            inner join
        '
            + @TargetDB +
            '.sys.columns C1
            on FKC.parent_column_id=C1.column_id
            and FKC.parent_object_id=C1.object_id
            inner join
        '
            + @TargetDB +
            '.sys.columns C2
            on FKC.referenced_column_id=C2.column_id
            and FKC.referenced_object_id=C2.object_id
    )
SELECT '''
            + @TargetDB +
            ''',C.FK_NAME,
             C.FK_TABLE,             STUFF( ( SELECT '',''+ A.FK_COLUMN FROM

CTE a WHERE c.FK_NAME = a.FK_NAME and C.FK_TABLE=a.FK_TABLE FOR XML

PATH('''')),1 ,1, '''') AS FK_COLUMNS,
             C.PK_TABLE,
             STUFF( ( SELECT '',''+ A.PK_Column FROM CTE a WHERE

c.FK_NAME = a.FK_NAME and C.PK_TABLE=a.PK_TABLE FOR XML

PATH('''')),1 ,1, '''') AS PK_COLUMNS
FROM CTE C
group by C.FK_NAME,
             C.FK_TABLE,
             C.PK_TABLE'
            )
END;

PRINT 'Print column mismatches!';
PRINT Replicate('-', Len(@SourceDB) + Len(@TargetDb) + 25);

INSERT INTO #TAB_RESULTS (
    DATABASENAME
    ,TABLENAME
    ,COLUMNNAME
    ,DATATYPE
    ,NULLABLE
    ,REASON
    )
SELECT @SourceDB AS DATABASENAME
    ,TABLENAME
    ,COLUMNNAME
    ,DATATYPE
    ,NULLABLE
    ,REASON
FROM (
    SELECT TABLENAME
        ,COLUMNNAME
        ,DATATYPE
        ,NULLABLE
    FROM #TABLIST_SOURCE

    EXCEPT

    SELECT TS.TABLENAME
        ,TS.COLUMNNAME
        ,TS.DATATYPE
        ,TS.NULLABLE
    FROM #TABLIST_SOURCE TS
    INNER JOIN #TABLIST_TARGET TT ON TS.TABLENAME = TT.TABLENAME
        AND TS.COLUMNNAME = TT.COLUMNNAME
    ) TAB_NONMATCH
CROSS JOIN (
    SELECT 'Missing Column' AS Reason
    ) Tab2

UNION ALL

SELECT @TargetDb AS DATABASENAME
    ,TABLENAME
    ,COLUMNNAME
    ,DATATYPE
    ,NULLABLE
    ,REASON
FROM (
    SELECT TABLENAME
        ,COLUMNNAME
        ,DATATYPE
        ,NULLABLE
    FROM #TABLIST_TARGET

    EXCEPT

    SELECT TT.TABLENAME
        ,TT.COLUMNNAME
        ,TT.DATATYPE
        ,TT.NULLABLE
    FROM #TABLIST_TARGET TT
    INNER JOIN #TABLIST_SOURCE TS ON TS.TABLENAME = TT.TABLENAME
        AND TS.COLUMNNAME = TT.COLUMNNAME
    ) TAB_MATCH
CROSS JOIN (
    SELECT 'Missing column ' AS Reason
    ) Tab2

--NON MATCHING COLUMNS
INSERT INTO #TAB_RESULTS (
    DATABASENAME
    ,TABLENAME
    ,COLUMNNAME
    ,DATATYPE
    ,NULLABLE
    ,REASON
    )
SELECT @SourceDB AS DATABASENAME
    ,TABLENAME
    ,COLUMNNAME
    ,DATATYPE
    ,NULLABLE
    ,REASON
FROM (
    SELECT *
    FROM (
        SELECT TS.TABLENAME
            ,TS.COLUMNNAME
            ,TS.DATATYPE
            ,TS.NULLABLE
        FROM #TABLIST_SOURCE TS
        INNER JOIN #TABLIST_TARGET TT ON TS.TABLENAME = TT.
            TABLENAME
            AND TS.COLUMNNAME = TT.COLUMNNAME
        ) T

    EXCEPT

    (
        SELECT TABLENAME
            ,COLUMNNAME
            ,DATATYPE
            ,NULLABLE
        FROM #TABLIST_SOURCE

        INTERSECT

        SELECT TABLENAME
            ,COLUMNNAME
            ,DATATYPE
            ,NULLABLE
        FROM #TABLIST_TARGET
        )
    ) TT1
CROSS JOIN (
    SELECT 'Definition not matching' AS REASON
    ) t

UNION ALL

SELECT @TargetDb AS DATABASENAME
    ,TABLENAME
    ,COLUMNNAME
    ,DATATYPE
    ,NULLABLE
    ,REASON
FROM (
    SELECT *
    FROM (
        SELECT TT.TABLENAME
            ,TT.COLUMNNAME
            ,TT.DATATYPE
            ,TT.NULLABLE
        FROM #TABLIST_TARGET TT
        INNER JOIN #TABLIST_SOURCE TS ON TS.TABLENAME = TT.
            TABLENAME
            AND TS.COLUMNNAME = TT.COLUMNNAME
        ) T

    EXCEPT

    (
        SELECT TABLENAME
            ,COLUMNNAME
            ,DATATYPE
            ,NULLABLE
        FROM #TABLIST_TARGET

        INTERSECT

        SELECT TABLENAME
            ,COLUMNNAME
            ,DATATYPE
            ,NULLABLE
        FROM #TABLIST_SOURCE
        )
    ) TAB_NONMATCH
CROSS JOIN (
    SELECT 'Definition not matching' AS REASON
    ) T;

PRINT 'Print index mismatches!';
PRINT Replicate('-', Len(@SourceDB) + Len(@TargetDb) + 25);

INSERT INTO #IDX_RESULTS (
    DATABASENAME
    ,TABLE_NAME
    ,IDX_NAME
    ,IDX_COLUMNS
    ,IDX_INCLUDED_COLUMNS
    ,IS_PRIMARY_KEY
    ,IS_UNIQUE
    ,REASON
    )
SELECT @SourceDB AS DATABASENAME
    ,TABLE_NAME
    ,IDX_NAME
    ,IDX_COLUMNS
    ,IDX_INCLUDED_COLUMNS
    ,IS_PRIMARY_KEY
    ,IS_UNIQUE
    ,REASON
FROM (
    SELECT TABLE_NAME
        ,IDX_NAME
        ,IDX_COLUMNS
        ,IDX_INCLUDED_COLUMNS
        ,IS_PRIMARY_KEY
        ,IS_UNIQUE
    FROM #IDXLIST_SOURCE

    EXCEPT

    SELECT TS.TABLE_NAME
        ,TS.IDX_NAME
        ,TS.IDX_COLUMNS
        ,TS.IDX_INCLUDED_COLUMNS
        ,TS.IS_PRIMARY_KEY
        ,TS.IS_UNIQUE
    FROM #IDXLIST_SOURCE TS
    INNER JOIN #IDXLIST_TARGET TT ON TS.TABLE_NAME = TT.TABLE_NAME
        AND TS.IDX_NAME = TT.IDX_NAME
    ) TAB_NONMATCH
CROSS JOIN (
    SELECT 'Missing Index n' AS Reason
    ) Tab2

UNION ALL

SELECT @TargetDb AS DATABASENAME
    ,TABLE_NAME
    ,IDX_NAME
    ,IDX_COLUMNS
    ,IDX_INCLUDED_COLUMNS
    ,IS_PRIMARY_KEY
    ,IS_UNIQUE
    ,REASON
FROM (
    SELECT TABLE_NAME
        ,IDX_NAME
        ,IDX_COLUMNS
        ,IDX_INCLUDED_COLUMNS
        ,IS_PRIMARY_KEY
        ,IS_UNIQUE
    FROM #IDXLIST_TARGET

    EXCEPT

    SELECT TT.TABLE_NAME
        ,TT.IDX_NAME
        ,TT.IDX_COLUMNS
        ,TT.IDX_INCLUDED_COLUMNS
        ,TT.IS_PRIMARY_KEY
        ,TT.IS_UNIQUE
    FROM #IDXLIST_TARGET TT
    INNER JOIN #IDXLIST_SOURCE TS ON TS.TABLE_NAME = TT.TABLE_NAME
        AND TS.IDX_NAME = TT.IDX_NAME
    ) TAB_MATCH
CROSS JOIN (
    SELECT 'Missing index ' AS Reason
    ) Tab2

--NON MATCHING INDEX
INSERT INTO #IDX_RESULTS (
    DATABASENAME
    ,TABLE_NAME
    ,IDX_NAME
    ,IDX_COLUMNS
    ,IDX_INCLUDED_COLUMNS
    ,IS_PRIMARY_KEY
    ,IS_UNIQUE
    ,REASON
    )
SELECT @SourceDB AS DATABASENAME
    ,TABLE_NAME
    ,IDX_NAME
    ,IDX_COLUMNS
    ,IDX_INCLUDED_COLUMNS
    ,IS_PRIMARY_KEY
    ,IS_UNIQUE
    ,REASON
FROM (
    SELECT *
    FROM (
        SELECT TS.TABLE_NAME
            ,TS.IDX_NAME
            ,TS.IDX_COLUMNS
            ,TS.IDX_INCLUDED_COLUMNS
            ,TS.IS_PRIMARY_KEY
            ,TS.IS_UNIQUE
        FROM #IDXLIST_SOURCE TS
        INNER JOIN #IDXLIST_TARGET TT ON TS.TABLE_NAME = TT.
            TABLE_NAME
            AND TS.IDX_NAME = TT.IDX_NAME
        ) T

    EXCEPT

    (
        SELECT TABLE_NAME
            ,IDX_NAME
            ,IDX_COLUMNS
            ,IDX_INCLUDED_COLUMNS
            ,IS_PRIMARY_KEY
            ,IS_UNIQUE
        FROM #IDXLIST_SOURCE

        INTERSECT

        SELECT TABLE_NAME
            ,IDX_NAME
            ,IDX_COLUMNS
            ,IDX_INCLUDED_COLUMNS
            ,IS_PRIMARY_KEY
            ,IS_UNIQUE
        FROM #IDXLIST_TARGET
        )
    ) TT1
CROSS JOIN (
    SELECT 'Definition not matching' AS REASON
    ) t

UNION ALL

SELECT @TargetDb AS DATABASENAME
    ,TABLE_NAME
    ,IDX_NAME
    ,IDX_COLUMNS
    ,IDX_INCLUDED_COLUMNS
    ,IS_PRIMARY_KEY
    ,IS_UNIQUE
    ,REASON
FROM (
    SELECT *
    FROM (
        SELECT TT.TABLE_NAME
            ,TT.IDX_NAME
            ,TT.IDX_COLUMNS
            ,TT.IDX_INCLUDED_COLUMNS
            ,TT.IS_PRIMARY_KEY
            ,TT.IS_UNIQUE
        FROM #IDXLIST_TARGET TT
        INNER JOIN #IDXLIST_SOURCE TS ON TS.TABLE_NAME = TT.
            TABLE_NAME
            AND TS.IDX_NAME = TT.IDX_NAME
        ) T

    EXCEPT

    (
        SELECT TABLE_NAME
            ,IDX_NAME
            ,IDX_COLUMNS
            ,IDX_INCLUDED_COLUMNS
            ,IS_PRIMARY_KEY
            ,IS_UNIQUE
        FROM #IDXLIST_TARGET

        INTERSECT

        SELECT TABLE_NAME
            ,IDX_NAME
            ,IDX_COLUMNS
            ,IDX_INCLUDED_COLUMNS
            ,IS_PRIMARY_KEY
            ,IS_UNIQUE
        FROM #IDXLIST_SOURCE
        )
    ) TAB_NONMATCH
CROSS JOIN (
    SELECT 'Definition not matching' AS REASON
    ) T;

PRINT 'Print key mismatches!';
PRINT Replicate('-', Len(@SourceDB) + Len(@TargetDb) + 25);

INSERT INTO #FK_RESULTS (
    DATABASENAME
    ,FK_NAME
    ,FK_TABLE
    ,FK_COLUMNS
    ,PK_TABLE
    ,PK_COLUMNS
    ,REASON
    )
SELECT @SourceDB AS DATABASENAME
    ,FK_NAME
    ,FK_TABLE
    ,FK_COLUMNS
    ,PK_TABLE
    ,PK_COLUMNS
    ,REASON
FROM (
    SELECT FK_NAME
        ,FK_TABLE
        ,FK_COLUMNS
        ,PK_TABLE
        ,PK_COLUMNS
    FROM #FKLIST_SOURCE

    EXCEPT

    SELECT TS.FK_NAME
        ,TS.FK_TABLE
        ,TS.FK_COLUMNS
        ,TS.PK_TABLE
        ,TS.PK_COLUMNS
    FROM #FKLIST_SOURCE TS
    INNER JOIN #FKLIST_TARGET TT ON TS.FK_NAME = TT.FK_NAME
    ) TAB_NONMATCH
CROSS JOIN (
    SELECT 'Missing Index n' AS Reason
    ) Tab2

UNION ALL

SELECT @TargetDb AS DATABASENAME
    ,FK_NAME
    ,FK_TABLE
    ,FK_COLUMNS
    ,PK_TABLE
    ,PK_COLUMNS
    ,REASON
FROM (
    SELECT FK_NAME
        ,FK_TABLE
        ,FK_COLUMNS
        ,PK_TABLE
        ,PK_COLUMNS
    FROM #FKLIST_TARGET

    EXCEPT

    SELECT TT.FK_NAME
        ,TT.FK_TABLE
        ,TT.FK_COLUMNS
        ,TT.PK_TABLE
        ,TT.PK_COLUMNS
    FROM #FKLIST_TARGET TT
    INNER JOIN #FKLIST_SOURCE TS ON TS.FK_NAME = TT.FK_NAME
    ) TAB_MATCH
CROSS JOIN (
    SELECT 'Missing key' AS Reason
    ) Tab2

--NON MATCHING Keys
INSERT INTO #FK_RESULTS (
    DATABASENAME
    ,FK_NAME
    ,FK_TABLE
    ,FK_COLUMNS
    ,PK_TABLE
    ,PK_COLUMNS
    ,REASON
    )
SELECT @SourceDB AS DATABASENAME
    ,FK_NAME
    ,FK_TABLE
    ,FK_COLUMNS
    ,PK_TABLE
    ,PK_COLUMNS
    ,REASON
FROM (
    SELECT *
    FROM (
        SELECT TS.FK_NAME
            ,TS.FK_TABLE
            ,TS.FK_COLUMNS
            ,TS.PK_TABLE
            ,TS.PK_COLUMNS
        FROM #FKLIST_SOURCE TS
        INNER JOIN #FKLIST_TARGET TT ON TS.FK_NAME = TT.FK_NAME
        ) T

    EXCEPT

    (
        SELECT FK_NAME
            ,FK_TABLE
            ,FK_COLUMNS
            ,PK_TABLE
            ,PK_COLUMNS
        FROM #FKLIST_SOURCE

        INTERSECT

        SELECT FK_NAME
            ,FK_TABLE
            ,FK_COLUMNS
            ,PK_TABLE
            ,PK_COLUMNS
        FROM #FKLIST_TARGET
        )
    ) TT1
CROSS JOIN (
    SELECT 'Definition not matching' AS REASON
    ) t

UNION ALL

SELECT @TargetDb AS DATABASENAME
    ,FK_NAME
    ,FK_TABLE
    ,FK_COLUMNS
    ,PK_TABLE
    ,PK_COLUMNS
    ,REASON
FROM (
    SELECT *
    FROM (
        SELECT TT.FK_NAME
            ,TT.FK_TABLE
            ,TT.FK_COLUMNS
            ,TT.PK_TABLE
            ,TT.PK_COLUMNS
        FROM #FKLIST_TARGET TT
        INNER JOIN #FKLIST_SOURCE TS ON TS.FK_NAME = TT.FK_NAME
        ) T

    EXCEPT

    (
        SELECT FK_NAME
            ,FK_TABLE
            ,FK_COLUMNS
            ,PK_TABLE
            ,PK_COLUMNS
        FROM #FKLIST_TARGET

        INTERSECT

        SELECT FK_NAME
            ,FK_TABLE
            ,FK_COLUMNS
            ,PK_TABLE
            ,PK_COLUMNS
        FROM #FKLIST_SOURCE
        )
    ) TAB_NONMATCH
CROSS JOIN (
    SELECT 'Definition not matching' AS REASON
    ) T;

--Print Final Results
SELECT *
FROM #TAB_RESULTS

SELECT *
FROM #IDX_RESULTS

SELECT *
FROM #FK_RESULTS

SQL Script Output Screenshot



User Level to execute

200

Hope you will like to Script of 3 and last type of C. Compare Database.

If you really like reading my blog and understood at least few thing then please don’t forget to subscribe my blog.

If you want daily link and analysis or interesting link go to following website which will give @ your inbox please subscribe our following link resource blog :

Link Resource Website

For More information related to BI World visit my Mentalist Blog

SQL Server Mentalist >> SQL Learning Blog

Business Intelligence Mentalist >> BI World

Infographic Mentalist >> Image worth explaining thousand Words

Microsoft Mentalist >> MVC,ASP.NET, WCF & LinQ

DBA Mentalist >>Advance SQL Server Blog

Microsoft BI Mentalist >> MS BI Development Update

Connect With me on

| FaceBook |Twitter | linkedIn| Google+ | WordPress | RSS |
