BI SQL # 257 : SQL Server DBA Scripts : SQL Agent Job Script

March 9, 2014 7:00 am

Hi Folks,

In this article we are going to cover SQL Agent Job Script.

In this post we are going to discuss following points:

• Problem Statement of SQL Script:
• Description of SQL Script:
• SQL Script Output Column
• SQL Script Code
• SQL Script Output Screenshot
• User Level to execute

Problem Statement of SQL Script:

How to Find SQL Agent Job details?

Description of SQL Script:

This script will Find SQL Agent Job details. The script itself explores SQL Agent Job metadata to get job statuses — when the job last ran, when it will run again, an aggregate count of the number of successful and failed executions in the queried time period, T-SQL code to disable the job,etc.

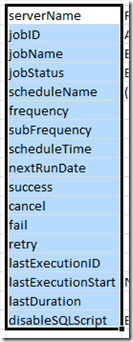

SQL Script Output Column



SQL Script Code

DECLARE @jobHistory TABLE (
    job_id UNIQUEIDENTIFIER
    ,success INT
    ,cancel INT
    ,fail INT
    ,retry INT
    ,last_execution_id INT
    ,last_duration CHAR(8)
    ,last_execution_start DATETIME
    );

WITH lastExecution
AS (
    SELECT job_id
        ,MAX(instance_id) AS last_instance_id
    FROM msdb.dbo.sysjobhistory
    WHERE step_id = 0
    GROUP BY job_id
    )
INSERT INTO @jobHistory
SELECT sjh.job_id
    ,SUM(CASE
            WHEN sjh.run_status = 1
                AND step_id = 0
                THEN 1
            ELSE 0
            END) AS success
    ,SUM(CASE
            WHEN sjh.run_status = 3
                AND step_id = 0
                THEN 1
            ELSE 0
            END) AS cancel
    ,SUM(CASE
            WHEN sjh.run_status = 0
                AND step_id = 0
                THEN 1
            ELSE 0
            END) AS fail
    ,SUM(CASE
            WHEN sjh.run_status = 2
                THEN 1
            ELSE 0
            END) AS retry
    ,MAX(CASE
            WHEN sjh.step_id = 0
                THEN instance_id
            ELSE NULL
            END) last_execution_id
    ,SUBSTRING(CAST(MAX(CASE
                    WHEN le.job_id IS NOT NULL
                        THEN sjh.run_duration
                    ELSE NULL
                    END) + 1000000 AS VARCHAR(7)), 2, 2) + ':' +
    SUBSTRING(CAST(MAX(CASE
                    WHEN le.job_id IS NOT NULL
                        THEN sjh.run_duration
                    ELSE NULL
                    END) + 1000000 AS VARCHAR(7)), 4, 2) + ':' +
    SUBSTRING(CAST(MAX(CASE
                    WHEN le.job_id IS NOT NULL
                        THEN sjh.run_duration
                    ELSE NULL
                    END) + 1000000 AS VARCHAR(7)), 6, 2) AS
    last_duration
    ,MAX(CASE
            WHEN le.last_instance_id IS NOT NULL
                THEN CONVERT(DATETIME, RTRIM(run_date)) + (
                        (run_time / 10000 * 3600
                            ) + (
                            (run_time % 10000
                                ) / 100 * 60
                            ) + (run_time % 10000
                            ) % 100
                        ) / (86399.9964
                        )
            ELSE '1900-01-01'
            END) AS last_execution_start
FROM msdb.dbo.sysjobhistory AS sjh
LEFT JOIN lastExecution AS le ON sjh.job_id = le.job_id
    AND sjh.instance_id = le.last_instance_id
GROUP BY sjh.job_id;

/* We need to parse the schedule into something we can understand */
DECLARE @weekDay TABLE (
    mask INT
    ,maskValue VARCHAR(32)
    );

INSERT INTO @weekDay
SELECT 1
    ,'Sunday'

UNION ALL

SELECT 2
    ,'Monday'

UNION ALL

SELECT 4
    ,'Tuesday'

UNION ALL

SELECT 8
    ,'Wednesday'

UNION ALL

SELECT 16
    ,'Thursday'

UNION ALL

SELECT 32
    ,'Friday'

UNION ALL

SELECT 64
    ,'Saturday';

/* Now let's get our schedule information */
WITH myCTE
AS (
    SELECT sched.NAME AS 'scheduleName'
        ,sched.schedule_id
        ,jobsched.job_id
        ,CASE
            WHEN sched.freq_type = 1
                THEN 'Once'
            WHEN sched.freq_type = 4
                AND sched.freq_interval = 1
                THEN 'Daily'
            WHEN sched.freq_type = 4
                THEN 'Every ' + CAST(sched.freq_interval AS
                        VARCHAR(5)) + ' days'
            WHEN sched.freq_type = 8
                THEN REPLACE(REPLACE(REPLACE((
                                    SELECT maskValue
                                    FROM @weekDay AS x
                                    WHERE sched.freq_interval
                                        & x.mask <> 0
                                    ORDER BY mask
                                    FOR XML RAW
                                    ), '"/><row maskValue="',
                                ', '), '<row maskValue="', '')
                        , '"/>', '') + CASE
                        WHEN sched.freq_recurrence_factor <> 0
                            AND sched.freq_recurrence_factor =
                            1
                            THEN '; weekly'
                        WHEN sched.freq_recurrence_factor <> 0
                            THEN '; every ' + CAST(sched.
                                    freq_recurrence_factor AS
                                    VARCHAR(10)) + ' weeks'
                        END
            WHEN sched.freq_type = 16
                THEN 'On day ' + CAST(sched.freq_interval AS
                        VARCHAR(10)) + ' of every ' + CAST(sched
                        .freq_recurrence_factor AS VARCHAR(10)
                    ) + ' months'
            WHEN sched.freq_type = 32
                THEN CASE
                        WHEN sched.freq_relative_interval = 1
                            THEN 'First'
                        WHEN sched.freq_relative_interval = 2
                            THEN 'Second'
                        WHEN sched.freq_relative_interval = 4
                            THEN 'Third'
                        WHEN sched.freq_relative_interval = 8
                            THEN 'Fourth'
                        WHEN sched.freq_relative_interval = 16
                            THEN 'Last'
                        END + CASE
                        WHEN sched.freq_interval = 1
                            THEN ' Sunday'
                        WHEN sched.freq_interval = 2
                            THEN ' Monday'
                        WHEN sched.freq_interval = 3
                            THEN ' Tuesday'
                        WHEN sched.freq_interval = 4
                            THEN ' Wednesday'
                        WHEN sched.freq_interval = 5
                            THEN ' Thursday'
                        WHEN sched.freq_interval = 6
                            THEN ' Friday'
                        WHEN sched.freq_interval = 7
                            THEN ' Saturday'
                        WHEN sched.freq_interval = 8
                            THEN ' Day'
                        WHEN sched.freq_interval = 9
                            THEN ' Weekday'
                        WHEN sched.freq_interval = 10
                            THEN ' Weekend'
                        END + CASE
                        WHEN sched.freq_recurrence_factor <> 0
                            AND sched.freq_recurrence_factor =
                            1
                            THEN '; monthly'
                        WHEN sched.freq_recurrence_factor <> 0
                            THEN '; every ' + CAST(sched.
                                    freq_recurrence_factor AS
                                    VARCHAR(10)) + ' months'
                        END
            WHEN sched.freq_type = 64
                THEN 'StartUp'
            WHEN sched.freq_type = 128
                THEN 'Idle'
            END AS 'frequency'
        ,ISNULL('Every ' + CAST(sched.freq_subday_interval AS
                VARCHAR(10)) + CASE
                WHEN sched.freq_subday_type = 2
                    THEN ' seconds'
                WHEN sched.freq_subday_type = 4
                    THEN ' minutes'
                WHEN sched.freq_subday_type = 8
                    THEN ' hours'
                END, 'Once') AS 'subFrequency'
        ,REPLICATE('0', 6 - LEN(sched.active_start_time)) + CAST(
            sched.active_start_time AS VARCHAR(6)) AS
        'startTime'
        ,REPLICATE('0', 6 - LEN(sched.active_end_time)) + CAST(
            sched.active_end_time AS VARCHAR(6)) AS 'endTime'
        ,REPLICATE('0', 6 - LEN(jobsched.next_run_time)) + CAST(
            jobsched.next_run_time AS VARCHAR(6)) AS
        'nextRunTime'
        ,CAST(jobsched.next_run_date AS CHAR(8)) AS
        'nextRunDate'
    FROM msdb.dbo.sysschedules AS sched
    JOIN msdb.dbo.sysjobschedules AS jobsched ON sched.
        schedule_id = jobsched.schedule_id
    WHERE sched.enabled = 1
    )
/* Finally, let's look at our actual jobs and tie it all together */
SELECT CONVERT(NVARCHAR(128), SERVERPROPERTY('Servername')) AS
    [serverName]
    ,job.job_id AS [jobID]
    ,job.NAME AS [jobName]
    ,CASE
        WHEN job.enabled = 1
            THEN 'Enabled'
        ELSE 'Disabled'
        END AS [jobStatus]
    ,COALESCE(sched.scheduleName, '(unscheduled)') AS
    [scheduleName]
    ,COALESCE(sched.frequency, '') AS [frequency]
    ,COALESCE(sched.subFrequency, '') AS [subFrequency]
    ,COALESCE(SUBSTRING(sched.startTime, 1, 2) + ':' + SUBSTRING(
            sched.startTime, 3, 2) + ' - ' + SUBSTRING(sched.
            endTime, 1, 2) + ':' + SUBSTRING(sched.endTime, 3, 2), ''
    ) AS [scheduleTime] -- HH:MM
    ,COALESCE(SUBSTRING(sched.nextRunDate, 1, 4) + '/' + SUBSTRING
        (sched.nextRunDate, 5, 2) + '/' + SUBSTRING(sched.
            nextRunDate, 7, 2) + ' ' + SUBSTRING(sched.nextRunTime
            , 1, 2) + ':' + SUBSTRING(sched.nextRunTime, 3, 2), '') AS
    [nextRunDate]
    ,COALESCE(jh.success, 0) AS [success]
    ,COALESCE(jh.cancel, 0) AS [cancel]
    ,COALESCE(jh.fail, 0) AS [fail]
    ,COALESCE(jh.retry, 0) AS [retry]
    ,COALESCE(jh.last_execution_id, 0) AS [lastExecutionID]
    ,jh.last_execution_start AS [lastExecutionStart]
    ,COALESCE(jh.last_duration, '00:00:01') AS [lastDuration]
    ,'EXECUTE msdb.dbo.sp_update_job @job_id = ''' + CAST(job.
        job_id AS CHAR(36)) + ''', @enabled = 0;' AS
    [disableSQLScript]
FROM msdb.dbo.sysjobs AS job
LEFT JOIN myCTE AS sched ON job.job_id = sched.job_id
LEFT JOIN @jobHistory AS jh ON job.job_id = jh.job_id
WHERE job.enabled = 1 -- do not display disabled jobs
    ORDER BY nextRunDate;

SQL Script Output Screenshot



User Level to execute

300

Hope you will like the SQL Agent Job Script.
